Transducers for rail vehicles according to ČSN EN 50155

Transducers meet the requirements of the standard

  • CSN EN 50155ed.5:        Electronic equipment for rail vehicles.
  • CSN EN 50121-3-2          Electromagnetic compatibility
  • CSN EN 61373 ed.2         Impact and vibration test
  • CSN EN 50124-1              Coordination of insulation
  • CSN EN 45545-2 + A1     Fire protection meets the set of requirements
  •                                                for monitored products according to Table 2
    •                                 the printed circuit board meets the set of R24 requirements
    •                                 the box meets the R26 requirements
Total 5 items

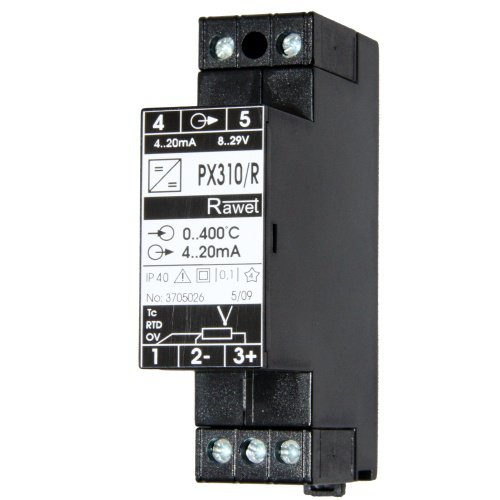

PX310/R

new
ISOLATED TRANSDUCER OF DC SIGNALS WITH PASSIVE OUTPUT FOR RAILWAY APPLICATIONS
  • 4..20mA loop powered
  • Rated impulse voltage Uni: 6kV
  • converts signal:
    • from any thermocouple with linearization and internal cold junction compensation
    • from RTD, resistive transmitter or potentiometer
    • NTC, KTY
  • user configuration of AY-USB adapter
  • accuracy <0.1%
  • version for mounting into switchboard on DIN 35 rail

Protocol-50155 Protocol-EMC Datasheet Protocol - vibration EU_ declaration_PX310_R
€126.90 excl. VAT

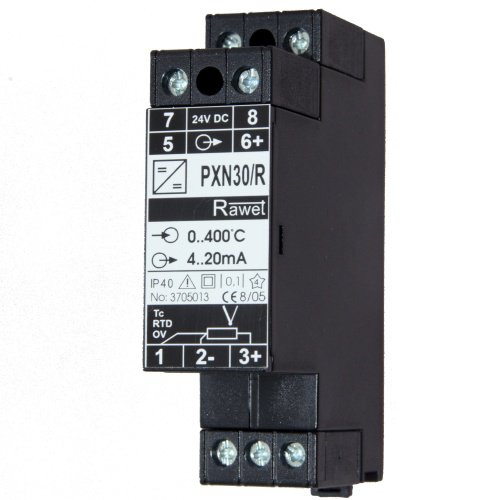

PXN30/R

new
ISOLATED TRANSDUCER OF DC SIGNALS WITH ACTIVE OUTPUT FOR RAILWAY APPLICATIONS
  • active output 4-20mA or 0-20mA or 0-10V resp. inverse transfers
  • converts signal:
    • from any thermocouple with linearization and internal cold junction compensation
    • from RTD, resistive transmitter or potentiometer
    • NTC, KTY
  • user configuration of AY-USB adapter
  • Rated impulse voltage Uni: 6kV
  • auxiliary power supply in a wide range of 16-300V DC and 90-250V AC
  • accuracy <0.1%
  • version for mounting into switchboard on DIN 35 rail
Protocol-EMC Datasheet Protocol-50155 Protocol - vibration EU_ declaration_PXN30_R
€137.60 excl. VAT

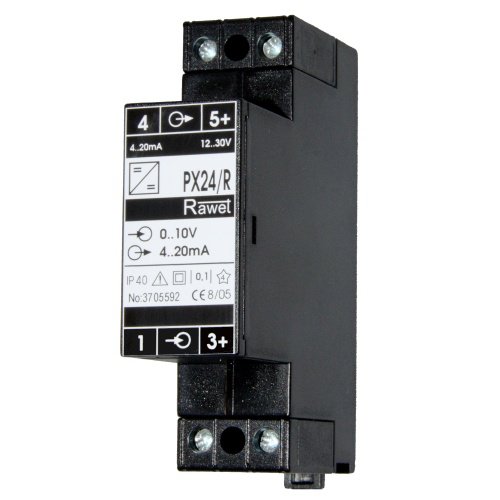

PX24/R

new
ISOLATED TRANSDUCER OF DC CURRENT OR VOLTAGE FOR RAILWAY APPLICATIONS
  • 4-20mA loop-powered
  • transducer for measurement DC current or voltage
  • directly current measurements up to ±10A DC, voltage up to ±1500V DC
  • analog measurement of the input signal
  • accuracy <0,1%
  • response time 1ms
  • rated impuls voltage Uni: 8kV
  • dielectric strenght  Ua input / output: 5kVrms
  • clearances and creepage distances min. 8mm
  • designed for DIN 35 rail mounting
Protocol-50155 Protocol-EMC Datasheet Protocol - vibration EU_ declaration_PX24_R
€125.90 excl. VAT

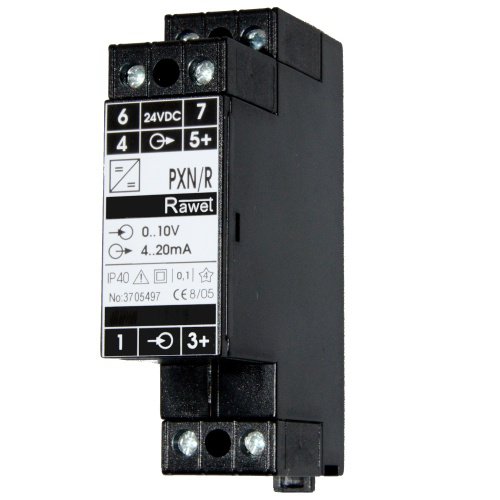

PXN/R

new
ISOLATED TRANSDUCER OF DC CURRENT OR VOLTAGE FOR RAILWAY APPLICATIONS
  • with auxiliary power supply
  • transducer for measurement DC current or voltage
  • allows unipolar and bipolar input and output signal
  • directly current measurements up to ±10A DC, voltage up to ±1500V DC
  • ability to measure absolute values and inverted signal
  • conversion accuracy <0,1%
  • response time 1ms, for order up to 300ms
  • dielectric strength input / output / supply power 5kVrms
  • universal power supply 16 – 300V DC & 90 – 250V AC
  • rated impuls voltage  Uni: 8kV
  • clearances and creepage distances min. 8mm
  • designed for DIN 35 rail mounting
Protocol-50155 Protocol-EMC Datasheet Protocol - vibration EU_ declaration_PXN_R
€140.10 excl. VAT

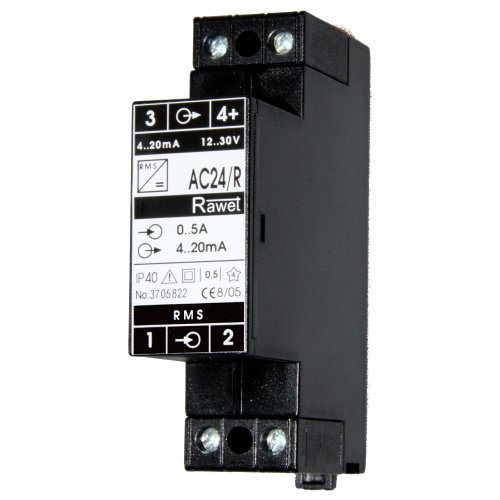

AC24/R

new
ISOLATED TRANSDUCER OF AC CURRENT OR VOLTAGE FOR RAILWAY APPLICATIONS
  • 4-20mA loop-powered
  • rated impuls voltage Uni: 8kV
  • analog measurement of the input signal
  • transducer for measurement RMS value of AC current or voltage
  • signal processing  with crest factor of 10
  • frequency range 40 až 1000Hz
  • accuracy <0,5%
  • response time 300ms
  • dielectric strenght  Ua input / output: 4kVrms
  • clearances and creepage distances min. 8mm
  • designed for DIN 35 rail mounting
Protocol-50155 Protocol-EMC Datasheet Protocol - vibration EU_ declaration_AC24_R
€132.50 excl. VAT
