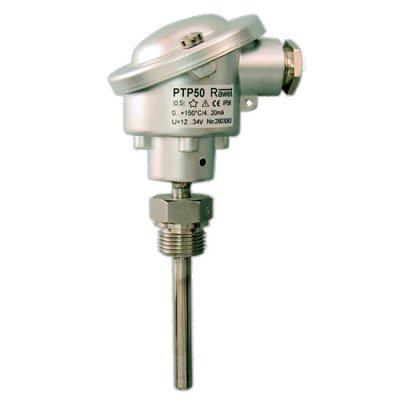

Product detail PT50

basic design Ø8mm, -25…+200°C (T=c. 10sec) or –25…+400°C (T=c. 25sec)
screw fitting: M12x1,5 M12x1,75; G1/4, G1/2; M20x1,5; M27x2, G3/4 or others by request
stem from stainless steel Ø8 or 10mm
it can be use Pt100/A, B, from two to four wire connection, double sensor, Pt1000, Ni1000, KTY, PTC, thermocouples…
accuracy according to used sensor

Datasheet Price calculator PTP

from €46.80 excl. VAT

Related products

Total 2 items

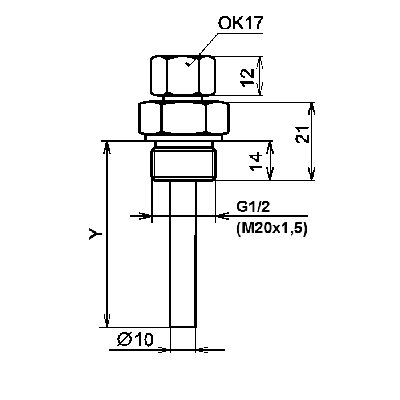

thermowells
adjustable threads
welded-on pieces

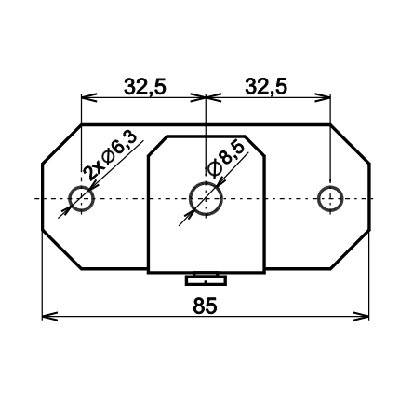

holder for air conditioning

Price calculator of thermowell

From €0.10 excl. VAT

5

(You can see description of sensors after click on Types, detailed tables are below)

Type	Description	TCR [ppm/°C]	Tolerance [°C]		Max. temp. [°C]
Type	Description	TCR [ppm/°C]	A	B	Max. temp. [°C]
Pt100	Platinum sensor 100Ω / 0°C	3851	0,15+0,002t	0,30+0,005t	-70..+600
Pt1000	Platinum sensor 1000Ω / 0°C	3851	0,15+0,002t	0,30+0,005t	-70..600
Ni100/6180	Nickel sensor 100Ω / 0°C	6180	0,20+0,0035t	0,40+0,007t	-60..+250
Ni1000/6180	Nickel sensor 1000Ω / 0°C	6180	0,20+0,0035t	0,40+0,007t	-60..+250
Ni1000/5000	Nickel sensor 1000Ω / 0°C	5000	0,20+0,0035t	0,40+0,007t	-60..+250
Tc“J“	Termocouple Fe-Ko (Fe-CuNi)	c. 5,37mV/100°C ±0,0075t or ±2,5°C			-200..+750
Tc“K“	Termocouple Ch-A (NiCr-NiAl)	c. 4,80mV/100°C ±0,0075t or ±2,5°C			-200..+1200
NTC…	Termistor NTC (variety of) 100Ω..100kΩ/25°C	nonlinear	±2..±5% (depending on design)		-40..+125
PTC…	Thermistor PTC with T sens +70..+160°C (by 10°C)	nonlinear	±5°C		max. +180

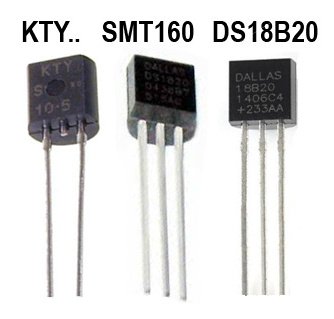

KTY…	Linear semicond. sensor 1000Ω (2000Ω) / +25°C	c. 0,79%/K	±1 .. ±5°C (depending on design)		-55..+150 (+300)
SMT160-30	Sensor SMARTEC (PWM modulation)	-	±0,7°C		-45..+130
DS 18B20	Sensor DALLAS (digital output)	-	±0,5°C		-10..+85

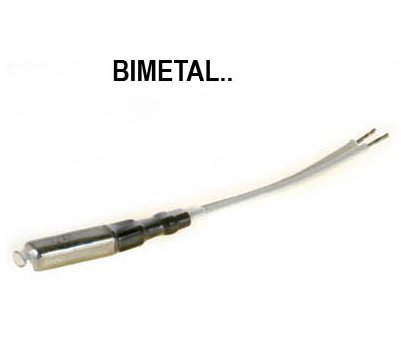

Bimetal "on"	Ton=+45..+145°C (by 5°C)	-	Ts ±5°C		145
Bimetal "off"	Toff=+45..+145°C (by 5°C)	-	Ts ±5°C		145

Attachment for downloads:
(in TXT format for easy linearization in PC)

Pt100 table by 1°C Tc "J" table by 1°C Tc "K" table by 1°C
