two-channel digital temperature transmitter with RS485 otput
inputs are not galvanic isolated!
it converts temperature from Pt100, Pt1000 or Ni1000 sensor to digital otput RS485
transmitter has auto-recognize for Pt100 or Pt1000 sensors
we can set it for other input signals too
communication by RS485 line with master device on baud rate 600..19200Bd
communication protocol ASCII or MODBUS-RTU

€97.80 excl. VAT

programmable converter with galvanic isolation 4000Veff input - output - power supply
it is designed for transduction:
   - temperature from any thermocouple with linearization and cold junction compensation
   - resistance from resistance transmitter (potentiometer)
   - temperature from thermistors, KTY or NTC sensors
   - voltage 0..1V DC
communication by RS485 line with master device on baud rate 600..19200Bd
typically max. 56 transmitters on the line, distance max. 1200m
communication protocol ASCII or MODBUS-RTU

€123.30 excl. VAT

two-channel programmable converter with galvanic isolation 4000Veff input - output - power supply
inputs are galvanic isolated max. 1000V!
is designed for transduction:
   - temperature from any thermocouple with linearization and cold junction compensation
   - resistance from resistance transmitter (potentiometer)
   - temperature from thermistors, KTY or NTC sensors
   - voltage 0..1V DC
communication by RS485 line with master device on baud rate 600..19200Bd
typically max. 56 transmitters on the line, distance max. 1200m
communication protocol ASCII or MODBUS-RTU

€164.40 excl. VAT

First 1 2 Last

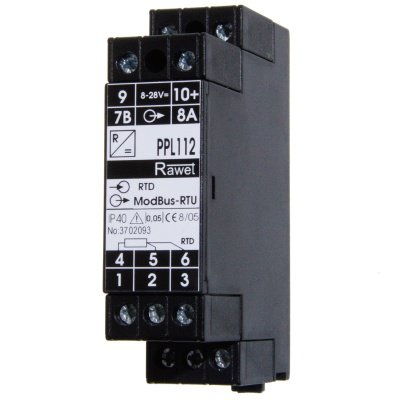

PPL112
